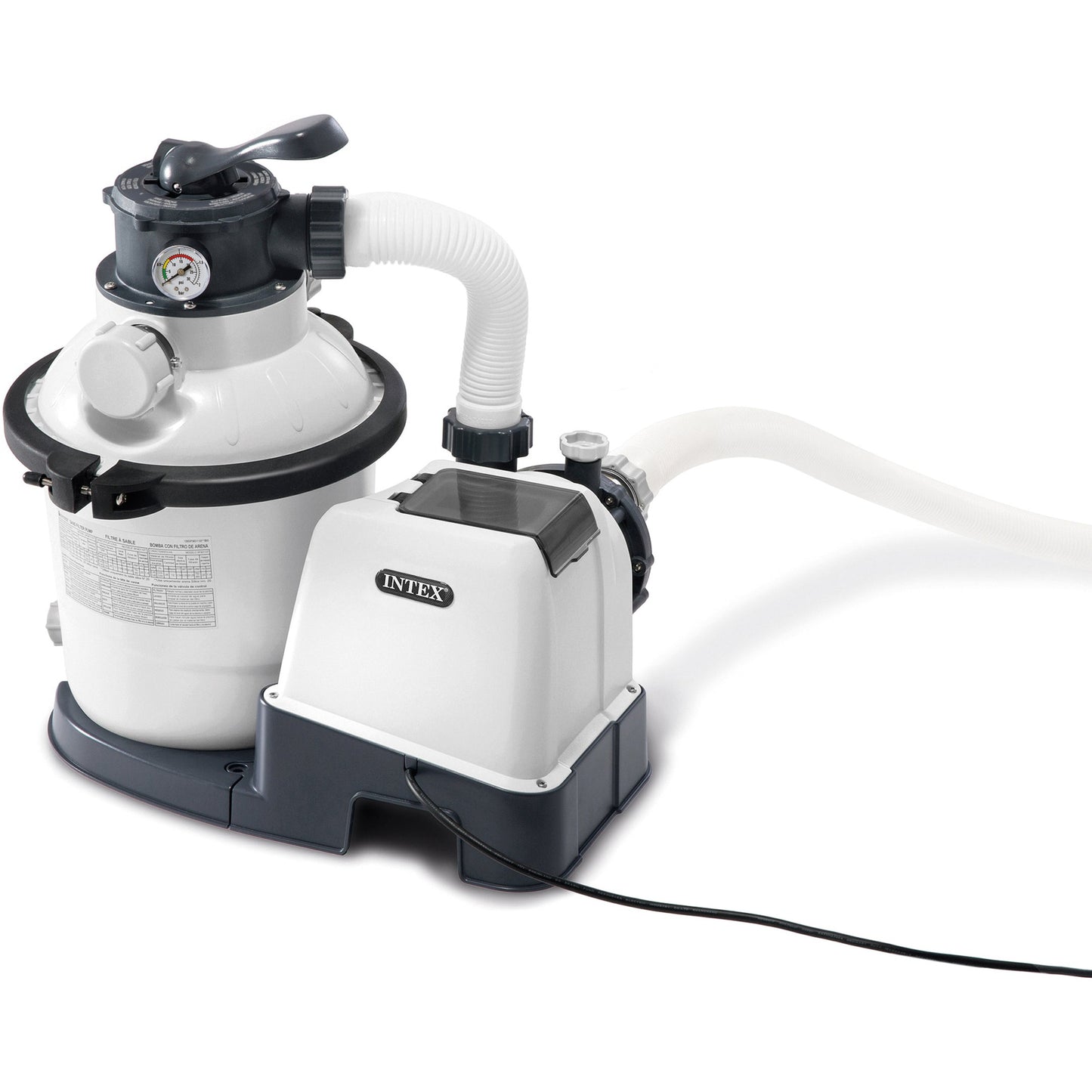

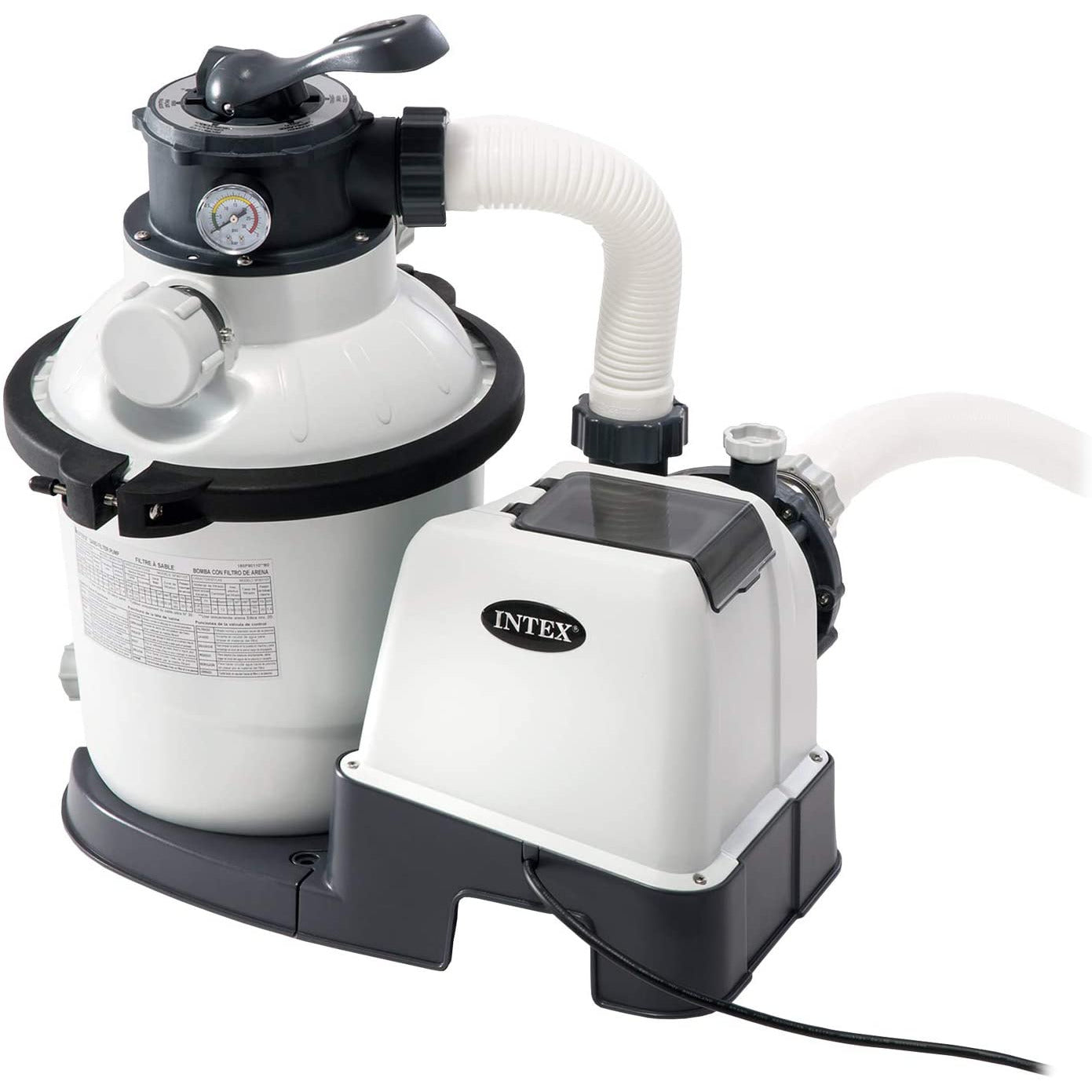

Intex pool sand filter pump SX1500 / SF90220

One of the most important components of your pool is high quality and efficient filter. Thanks to filtration and circulation, they always ensure clear and clean water.

With a circulation capacity of 4,000 l/h and pump capacity of 5,700 l/h, this Intex pump model is suitable for pools with a water volume of up to 29,100 l. This model is also suitable for Bestway pools.

Recommended filter media Glass granules or Filter balls

The 6-way valve allows easy handling and the integrated manometer provides information on the operating pressure.
A pre-filter on the filter itself catches dirt before it can get into the pump. The pump is also equipped with a timer with which the filter cycles can be easily set. The system is operated with a mains voltage of 230V and the output is 190W.

The plastic kettle with a diameter of 254mm stands on a base plate (supplied) and the amount of sand required is approx. 12kg. Filter sand with a grain size of 0.7-1.2mm is recommended (sand is not included in the delivery).

For pools with a standard connection of 32mm, the adapter for Intex pools Ø 32 to 38mm x 2" IG must be used which is not included in the scope of delivery!

• Comes complete with water revitalization nozzle sets for your Intex pool

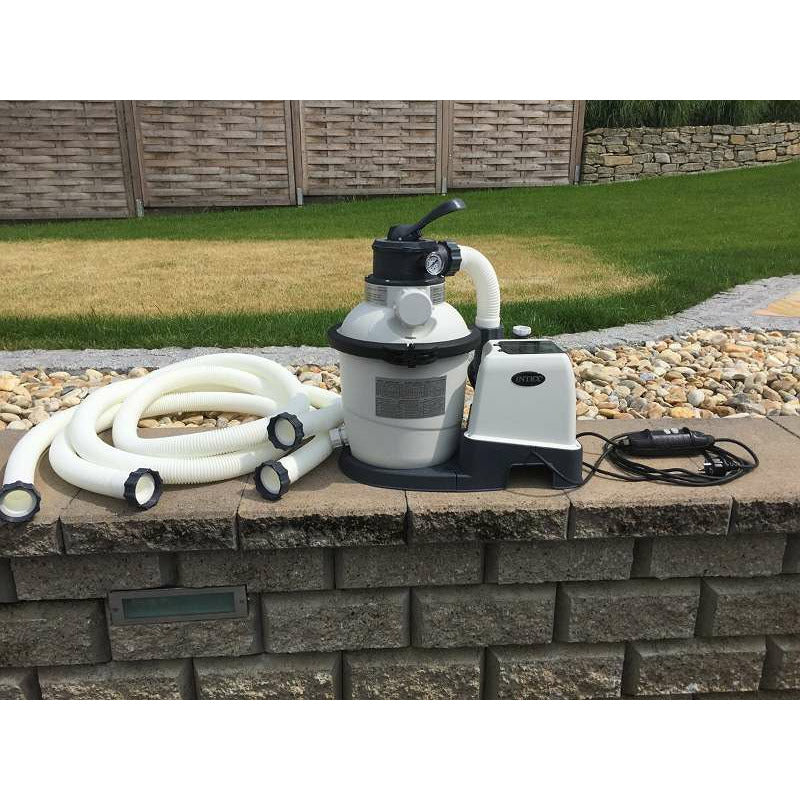

• Includes 2 x 38mm hoses

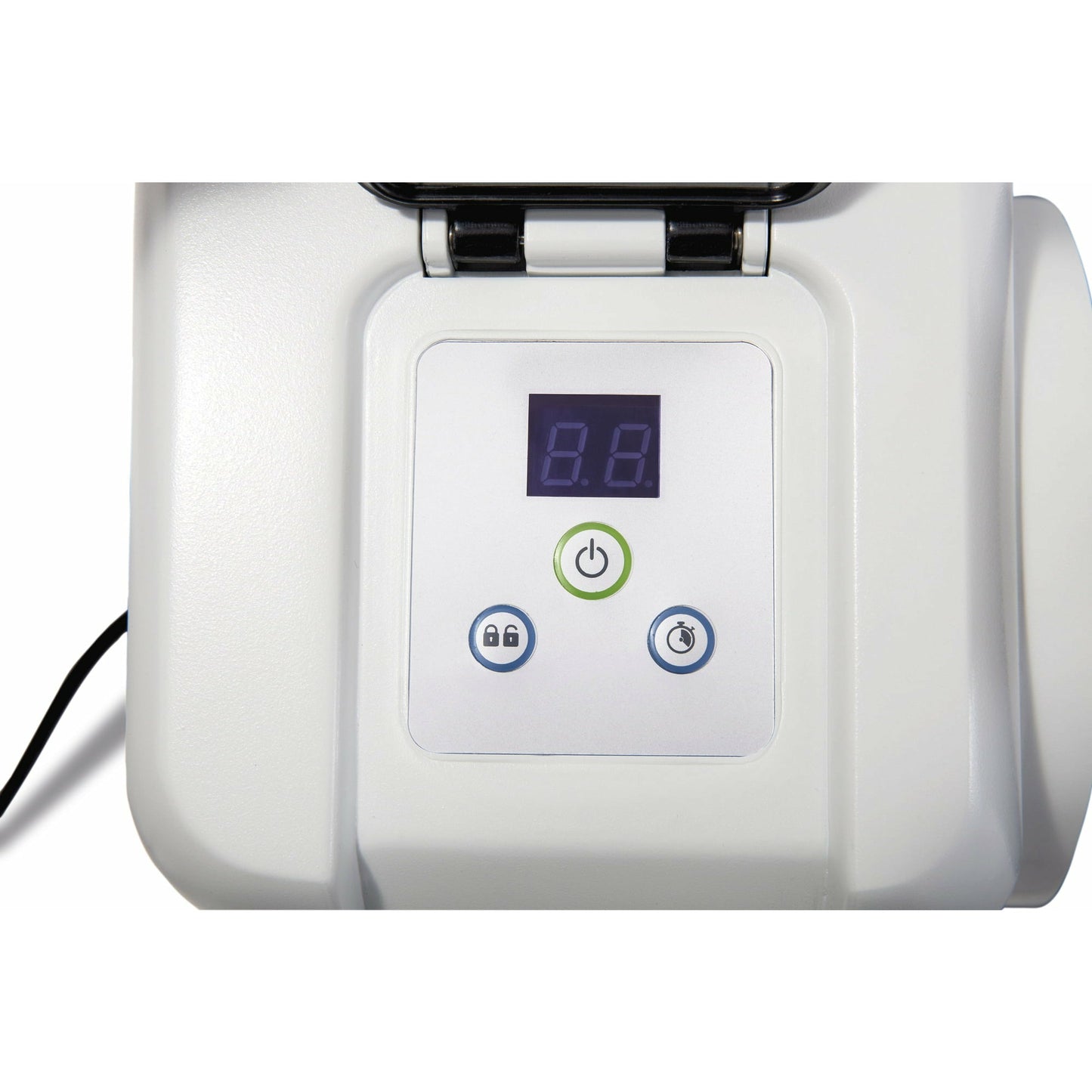

• Integrated timer
• Not self-priming, so the pump must be below the water level
• Maximum water temperature is 35°C
• Standard connection for all Intex pools
• Connection for Ø 32mm possible with a special adapter (not included)
• Suitable for saltwater up to a salt content of 3g/l
• Dimensions: 64 x 52 x 63 (L / W / H)

High-quality filter pump

• High filter performance
• Low energy consumption

Pre-filter

• Prevents the ingress of large dirt particles
• Protects the filter pump
• Reduces the use of pool maintenance products

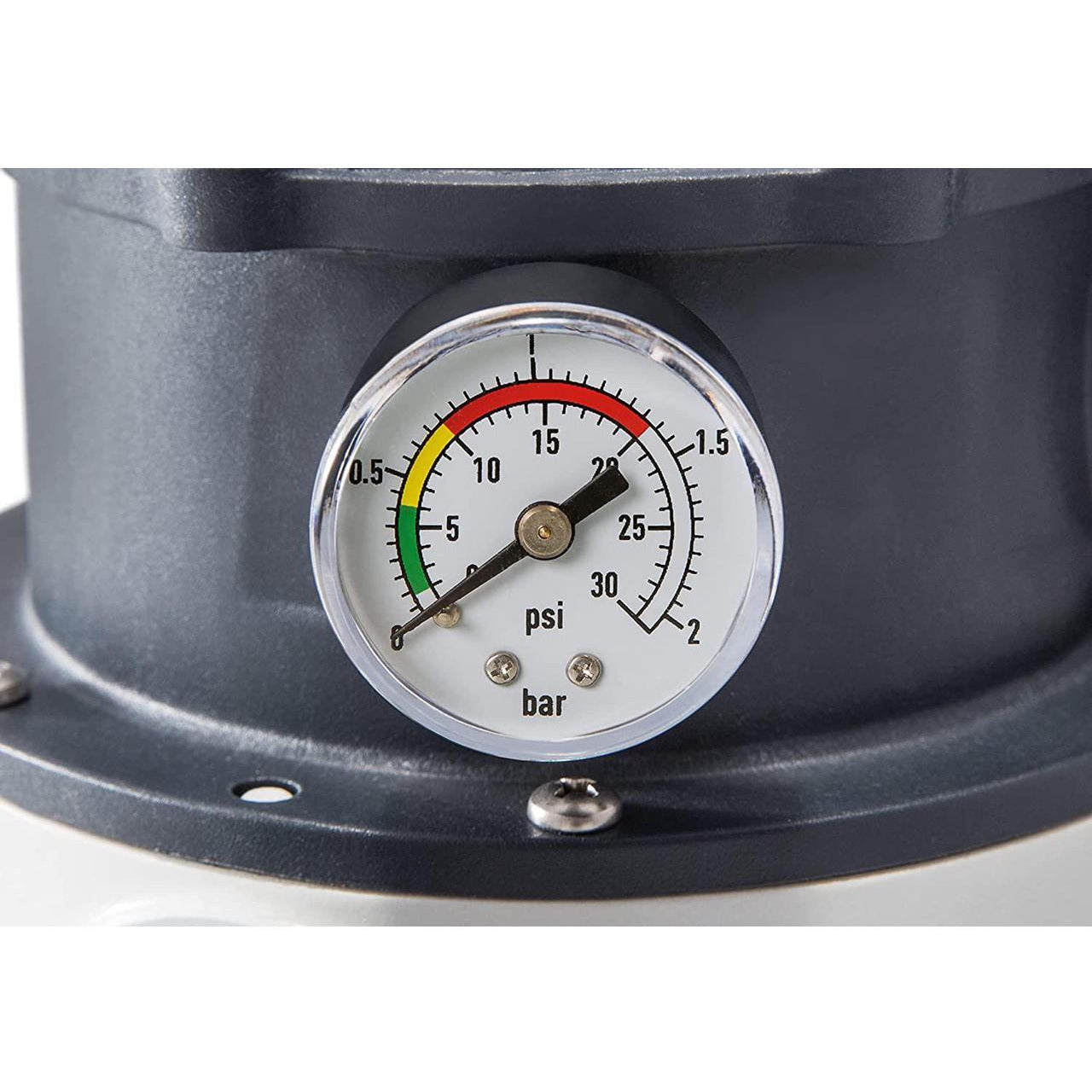

Manometer (pressure control)

• Display of the current operating pressure
• Complemented by a colour scale

GREEN: Filtration on
YELLOW: Filtration available (backwash system recommended)
RED: Filtration no longer available (backwash system immediately)

* Backwashing cleans the filter medium (eg: quartz sand) and thereby reduces the resistance or pressure, which can be seen on the pressure gauge

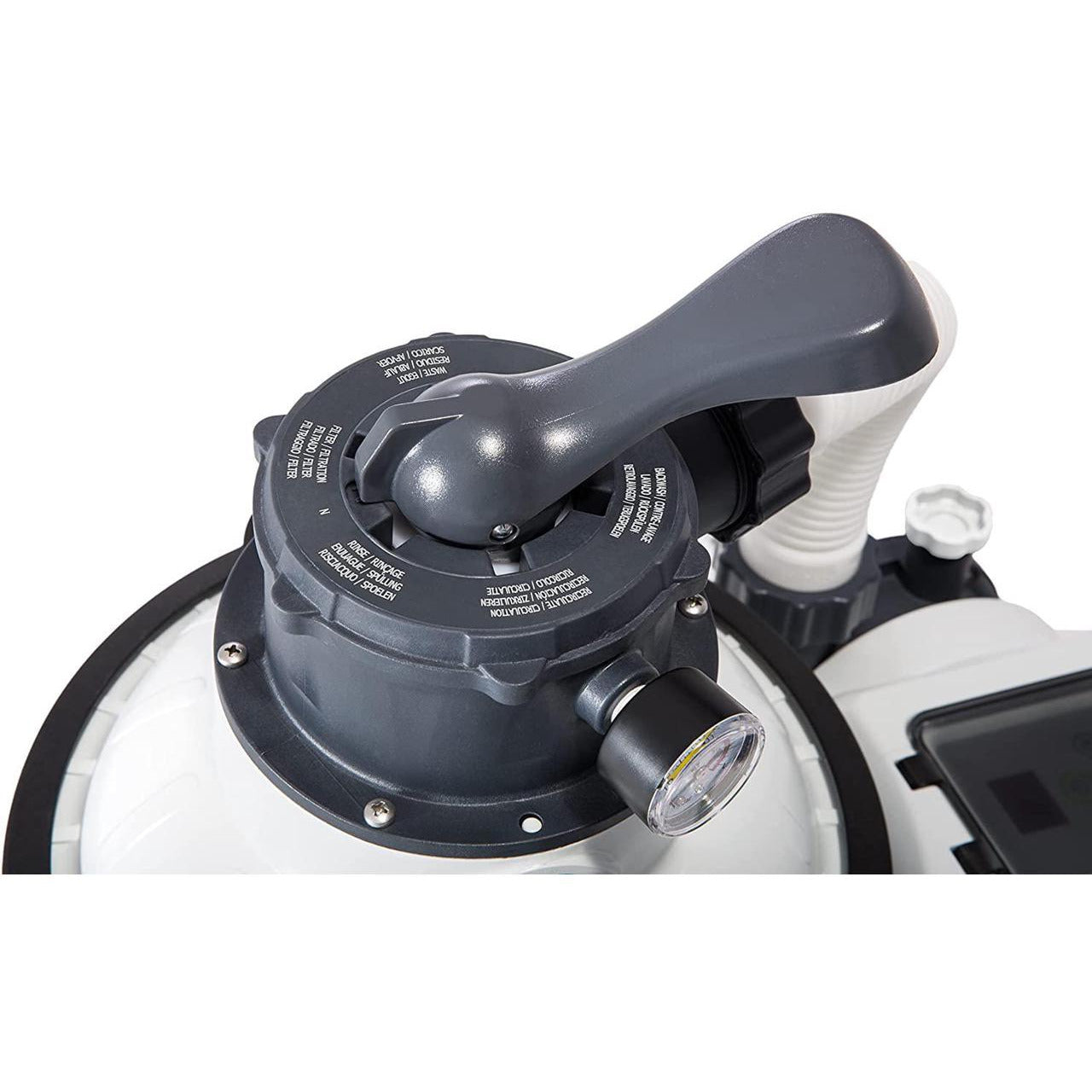

6-Way Valve

The 6 settings are:

• Filter
• Backwash
• Rinse
• Emptying
• Circulate
• Closed

Suitable also for Bestway pools.
