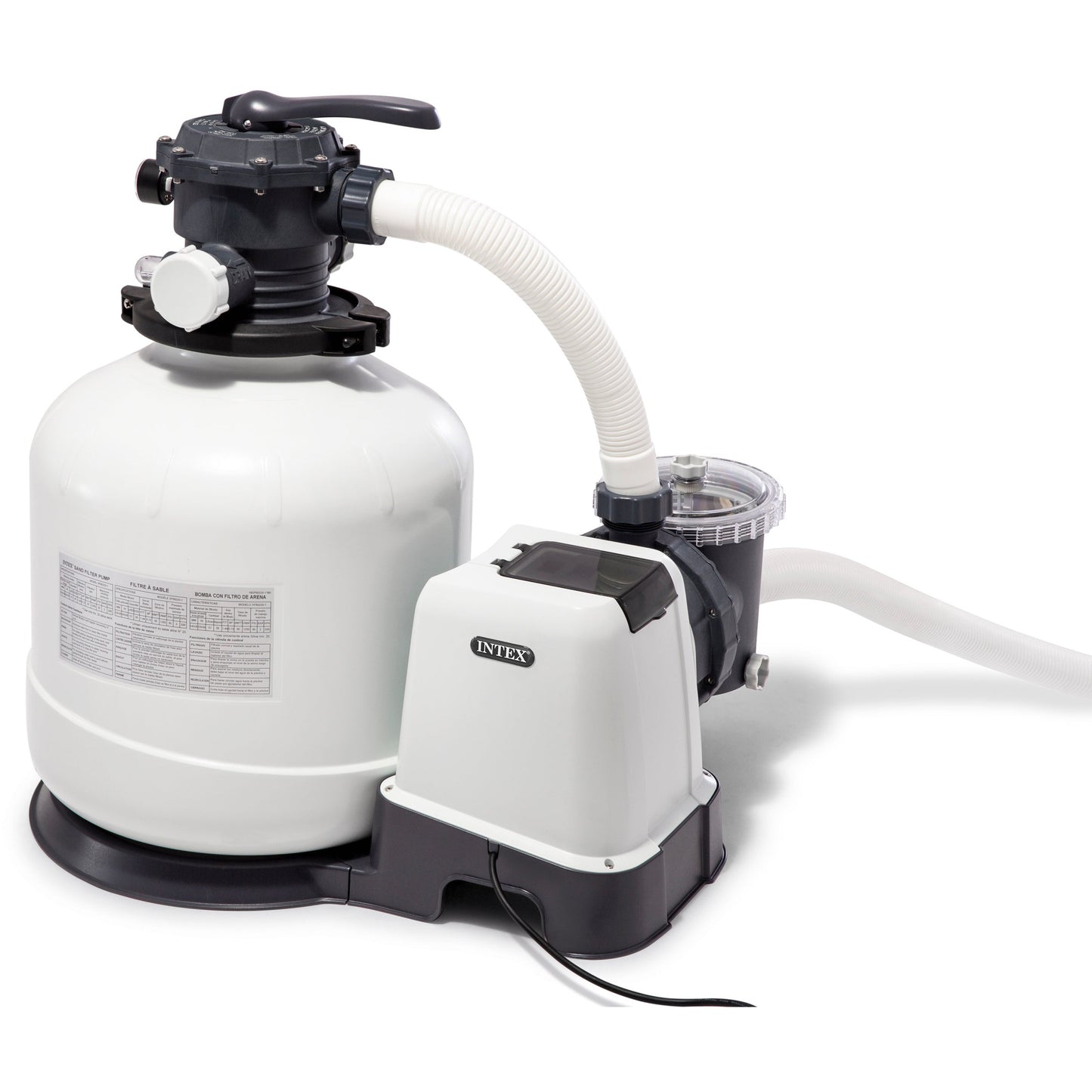

Intex pool sand filter pump SX3200 / SF60220

One of the most important components of your pool is high quality and efficient filter. Thanks to filtration and circulation, they always ensure clear and clean water.

This Intex sand filter system is suitable for pools up to 66,600 l water capacity and has a circulation capacity of 9,200 l/h and pump capacity of 12,000 l /h. This model is also suitable for Bestway pools.

Recommended filter media Glass granules or Filter balls

The 6-way valve ensures easy handling and operation of the filter system. The integrated pressure gauge allows the operating pressure to be read off and the filter cycle can be easily set using the timer on the pump. The mains voltage of the system is 230V and the power is 550W. The boiler of the filter system has a diameter of 410 mm at the widest point. The amount of sand required for this filter system is approx. 55kg (not included in the scope of delivery).

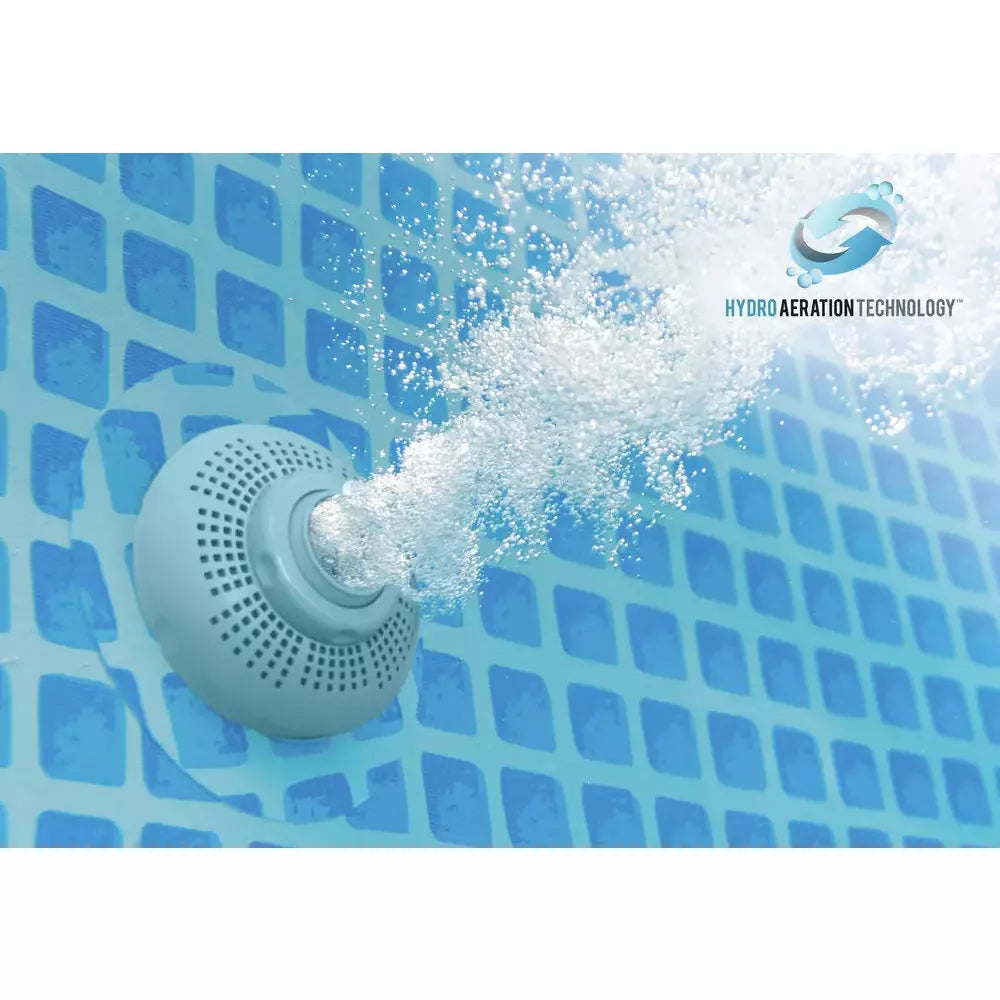

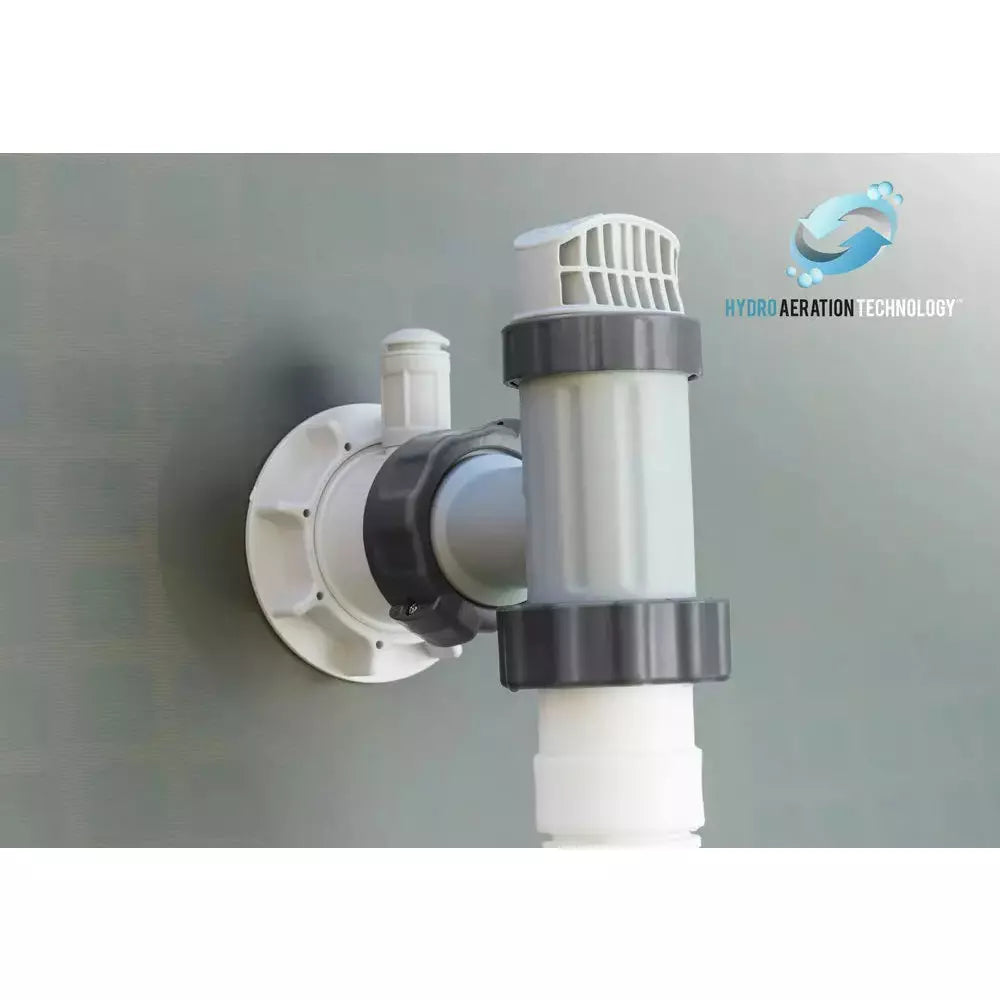

• Comes complete with water revitalization nozzle sets for your Intex pool
• Includes 2 x 38mm hoses
• Integrated timer
• Not self-priming, so the pump must be below the water level
• The maximum water temperature is 35°C
• Standard connection for all Intex pools
• Suitable for saltwater up to a salt content of 3g/l
• Dimensions cm approx.: 78 x 54 x 75 (L/W/H)

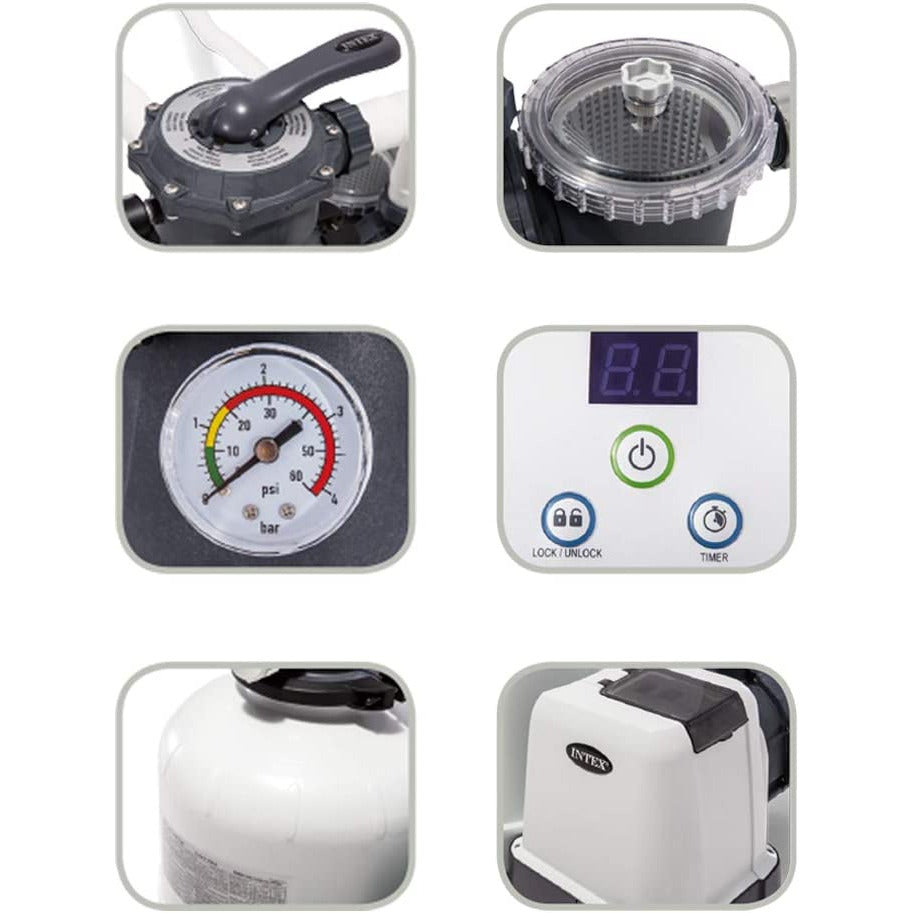

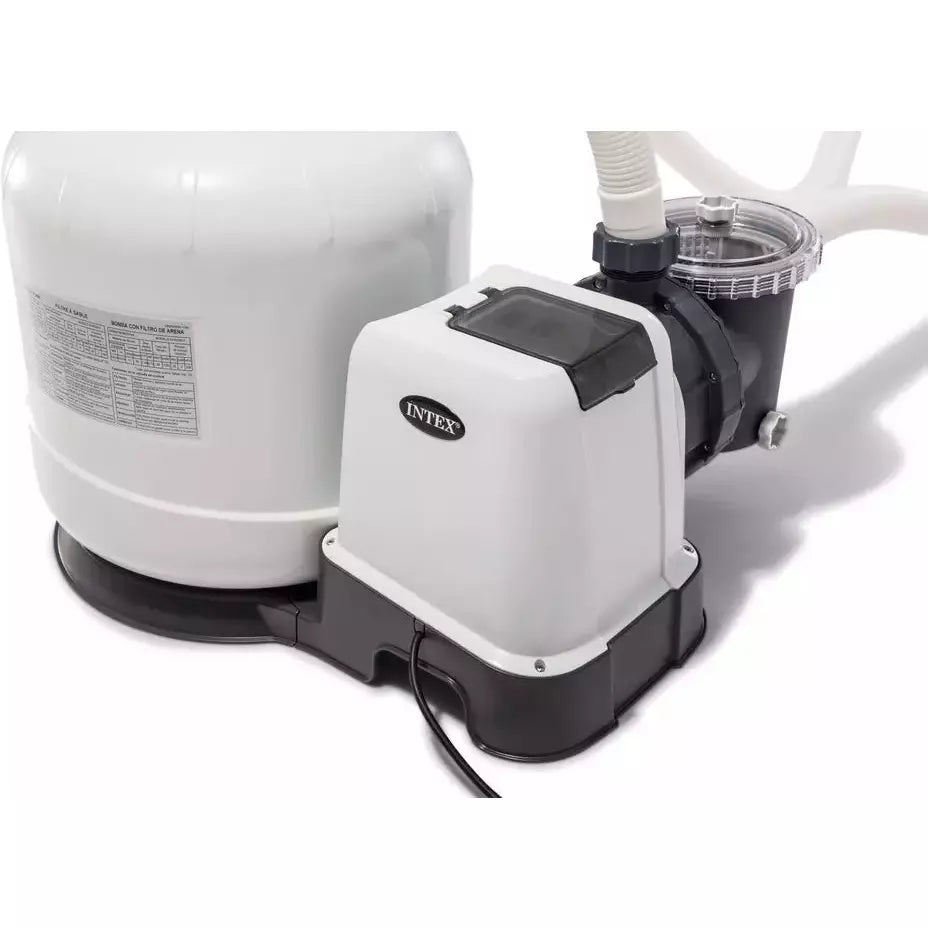

High-quality filter pump

• High filter performance
• Low energy consumption
• Not self-priming, so the pump must be below the water level

Pre-filter

• Prevents the ingress of large dirt particles
• Protects the filter pump
• Reduces the use of pool maintenance products

Manometer (pressure control)

• Display of the current operating pressure
• Complemented by a colour scale

GREEN: Filtration on
YELLOW: Filtration available (backwash system recommended)
RED: Filtration no longer available (backwash system immediately)

* Backwashing cleans the filter medium (eg: quartz sand) and thereby reduces the resistance or pressure, which can be seen on the pressure gauge

6-Way Valve

The 6 settings are:

• Filter
• Backwash
• Rinse
• Emptying
• Circulate
• Closed

Suitable also for Bestway pools.
